Two-Factors Design: Augmented Design in RCBD • inti

Planning an experiment follows a reproducible routine:

Load required libraries: Load inti, knitr, and dplyr packages.
Define factor levels: Set up lists with genotypes, treatments, and management factors.
Dispatch design generator: Choose between CRD, RCBD, Split-plot, or Augmented designs.
Plot the field sketch: Verify spatial layouts and serpentine/zigzag sequences.
Label design: Design the experimental labels to facilitate the data collection.
Export to Field Book app: Generate field-ready sheets with trait parameters.

# Install packages and dependencies

library(inti)
library(dplyr)
library(huito)

Designs with Two Factors

When evaluating two or more factors, four designs become available: CRD, RCBD, Split-plot RCBD, and Augmented.

Augmented Design in RCBD (Augmented RCBD)

The Augmented Design is recommended for screening large collections of entries (e.g., accessions or candidate clones) when seed or space is limited, repeating check varieties in each block while evaluating new entries only once.

# 1. Define checks (commercial controls) and new accessions
checks <- c("INIA_415", "INIA_420")
entries <- paste0("Geno_", 1:50)

# 2. Generate Augmented layout: 18 entries + (2 checks x 3 blocks) = 24 plots
aug_exp <- design_augmented(
  checks = checks,
  entries = entries,
  blocks = 5,
  zigzag = FALSE,
  seed = 2026
)

# Fieldbook preview
aug_exp$fieldbook %>%
  head(10) %>%
  knitr::kable(caption = "Augmented RCBD Fieldbook preview")

Augmented RCBD Fieldbook preview
qrcode	plots	ntreat	entry	type	checks	block	sort	rows	cols	design
inkaverse_1001_INIA_415	1001	1	INIA_415	check	1	1	1	1	1	augmented
inkaverse_1002_Geno_38	1002	40	Geno_38	test	0	1	2	1	2	augmented
inkaverse_1003_Geno_31	1003	33	Geno_31	test	0	1	3	1	3	augmented
inkaverse_1004_Geno_36	1004	38	Geno_36	test	0	1	4	1	4	augmented
inkaverse_1005_Geno_45	1005	47	Geno_45	test	0	1	5	1	5	augmented
inkaverse_1006_Geno_29	1006	31	Geno_29	test	0	1	6	1	6	augmented
inkaverse_1007_Geno_5	1007	7	Geno_5	test	0	1	7	1	7	augmented
inkaverse_1008_Geno_44	1008	46	Geno_44	test	0	1	8	1	8	augmented
inkaverse_1009_INIA_420	1009	2	INIA_420	check	1	1	9	1	9	augmented
inkaverse_1010_Geno_34	1010	36	Geno_34	test	0	1	10	1	10	augmented

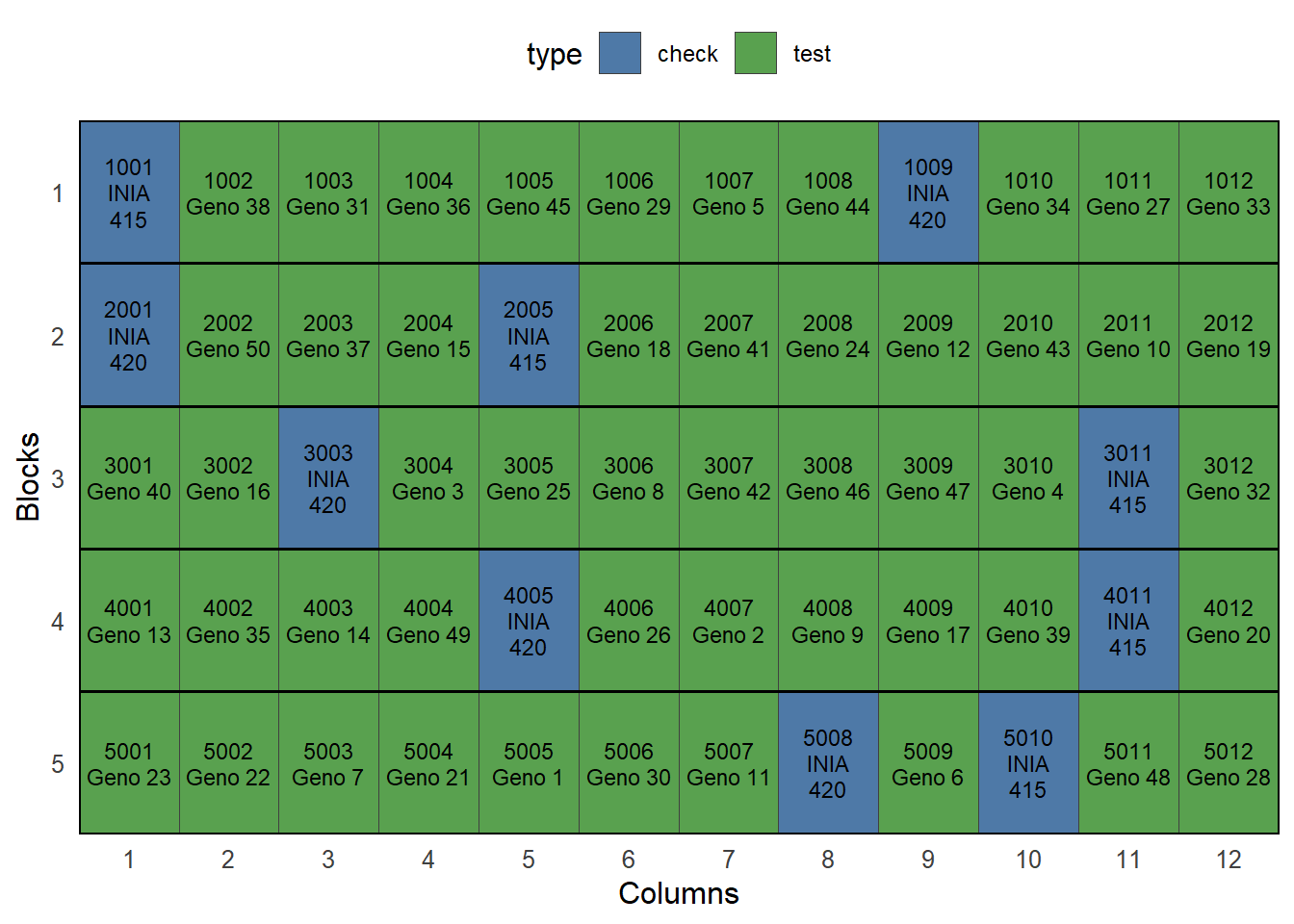

# Field layout visualization
tarpuy_plotdesign(
  data = aug_exp,
  factor = "type",
  fill = c("plots", "entry")
)

Label

The experimental field book generated by the design is used as the input data for label creation. Each row represents an experimental unit, allowing the automatic generation of individualized labels.

# Experimental fieldbook
fb <- aug_exp$fieldbook

Customize the label layout

The label layout can be customized by combining text, images and QR codes. Each layer can use values from the experimental field book, allowing automatic generation of labels for every experimental plot.

Load package and import fonts.

font <- c("Permanent Marker", "Tillana", "Courgette")

huito_fonts(font)

You can find more fonts in https://fonts.google.com/

Label design

label <- fb %>%
  label_layout(
    size = c(5.2, 10)
    ,
    border_color = "#5C0000"
    ,
    border_width = 1.5
  ) %>%
  include_image(
    value = "https://inkaverse.com/img/inkaverse.png"
    ,
    size = c(1.3, 1.5)
    ,
    position = c(0.8, 9.1)
  )  %>%
  include_text(
    value = "plots"
    ,
    position = c(4.2, 9.1)
    ,
    size = 20
    ,
    color = "black"
    ,
    fontface = "bold"
    ,
    font = font[1]
  )  %>%
  include_image(value = "https://huito.inkaverse.com/img/scale.pdf"
                ,
                size = c(5, 1)
                ,
                position = c(2.6, 7.7)) %>%
  include_barcode(value = "qrcode"
                  ,
                  size = c(5, 5)
                  ,
                  position = c(2.6, 4.7)) %>%
  include_text(
    value = "checks"
    ,
    position = c(2.6, 2)
    ,
    size = 12
    ,
    prefix = "Checks: "
    ,
    color = "blue"
    ,
    font = font[2]
    ,
    fontface = "bold"
  )  %>%
    include_text(
    value = "entry"
    ,
    position = c(2.6, 1.5)
    ,
    size = 12
    ,
    prefix = "Entry: "
    ,
    color = "red"
    ,
    font = font[2]
    ,
    fontface = "bold"
  )  %>%
  include_image(value = "https://huito.inkaverse.com/img/scale.pdf"
                ,
                size = c(5, 1)
                ,
                position = c(2.6, 0.6))

Label preview

The preview mode label_print(mode = "preview") generate a example of the label design from a random row of the data set.

Generate the complete labels

If you want generate the complete labels list, change: label_print(mode = "complete").

label %>%
  label_print(mode = "complete"
              , filename = "vertical-aug")
